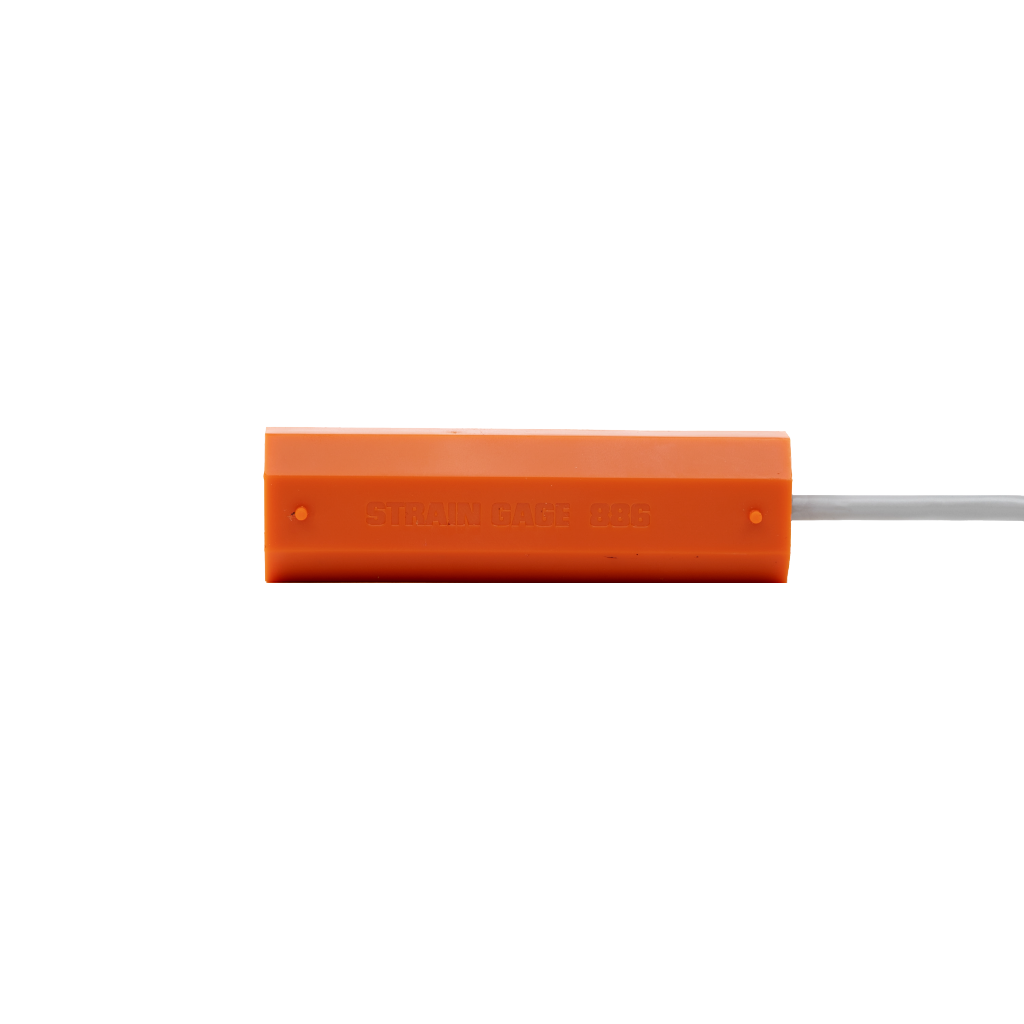

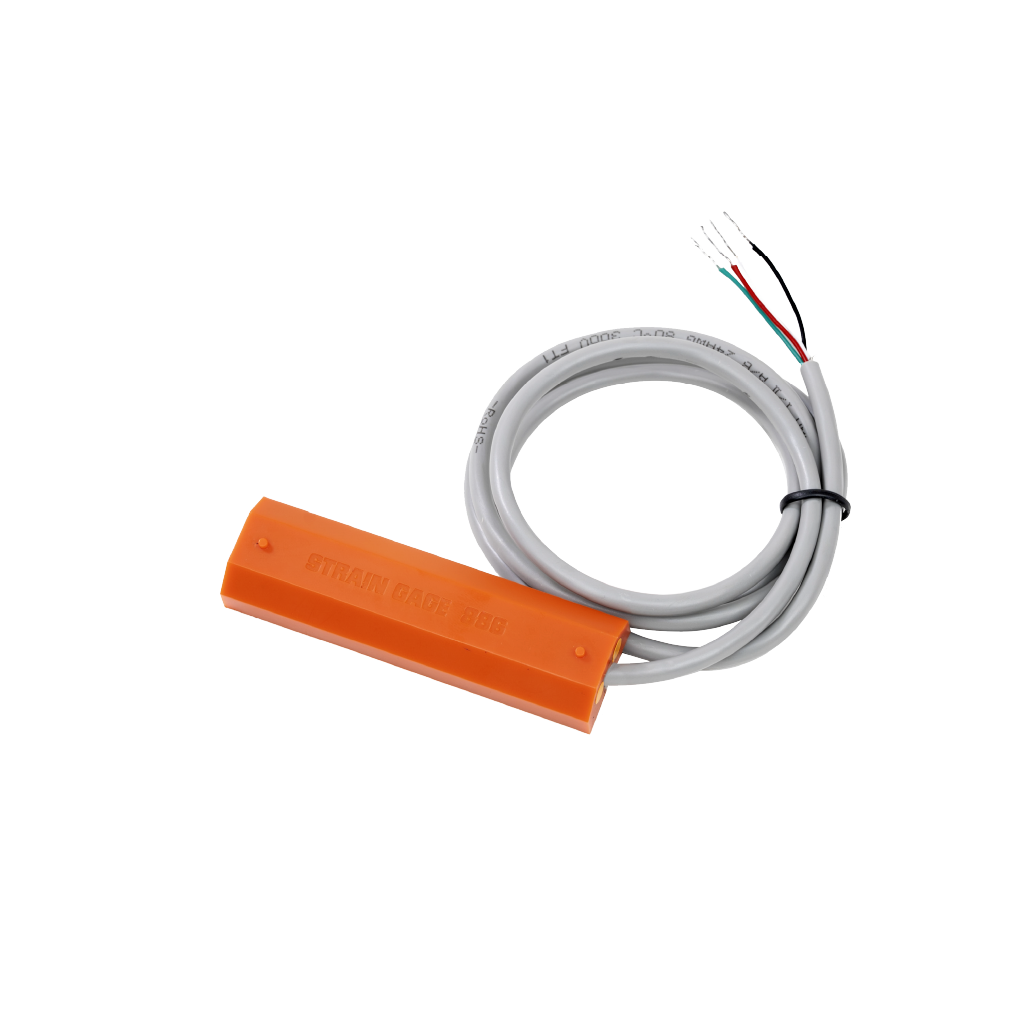

VW Spot-Weldable Strain Gauge

VW Spot-Weldable Strain Gauge

Feature and Application

Introduction

VW Spot-Weldable Strain Gauge, as the name suggested, can be welded to load-bearing beams or tunnel segments to measure its strain. it can provide accurate, reliable, and stable data reading over long lengths.

Applications

Key Features

High Accuracy

High Resolution

Compatible with dot series datalogger

Waterproof

Best Suited

Struts

Tunnel Segment

Sheet Pile Walling

Web Monitoring Tool and Software

The “dot Cloud” adopts a web-based architecture and primarily provides the NB-IoT datalogger developed by Sanlien Technology.

Web Monitoring Tool and Software

dot Cloud

The “dot Cloud” adopts a web-based architecture and primarily provides the NB-IoT datalogger developed by Sanlien Technology.

Product Specification

Sensor Type

Vibrating Wire Sensor

Temperature Type

Thermistor

Measuring Range

3000 micro-strain

Temperature Resolution

0.1°C

Accuracy

±0.1% F.S.

Working Temperature

-30°C to 80°C

Sensitivity

1 micro-strain

Dimension (W x L x H)

Sensor: 85 x 25 x 14 mm
Strain gauge: 70 x 9 x 2.4 mm

*All prices, features, and specifications are subject to change without prior notice.
