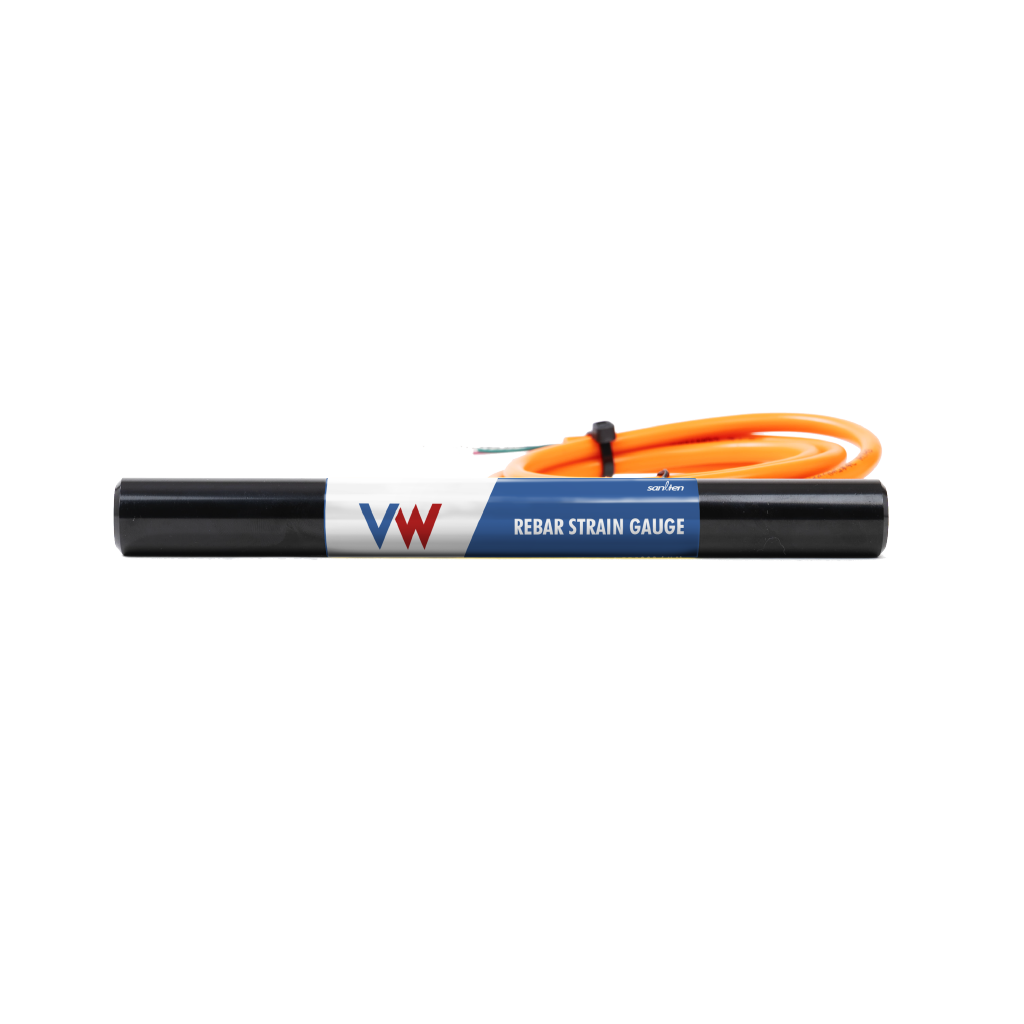

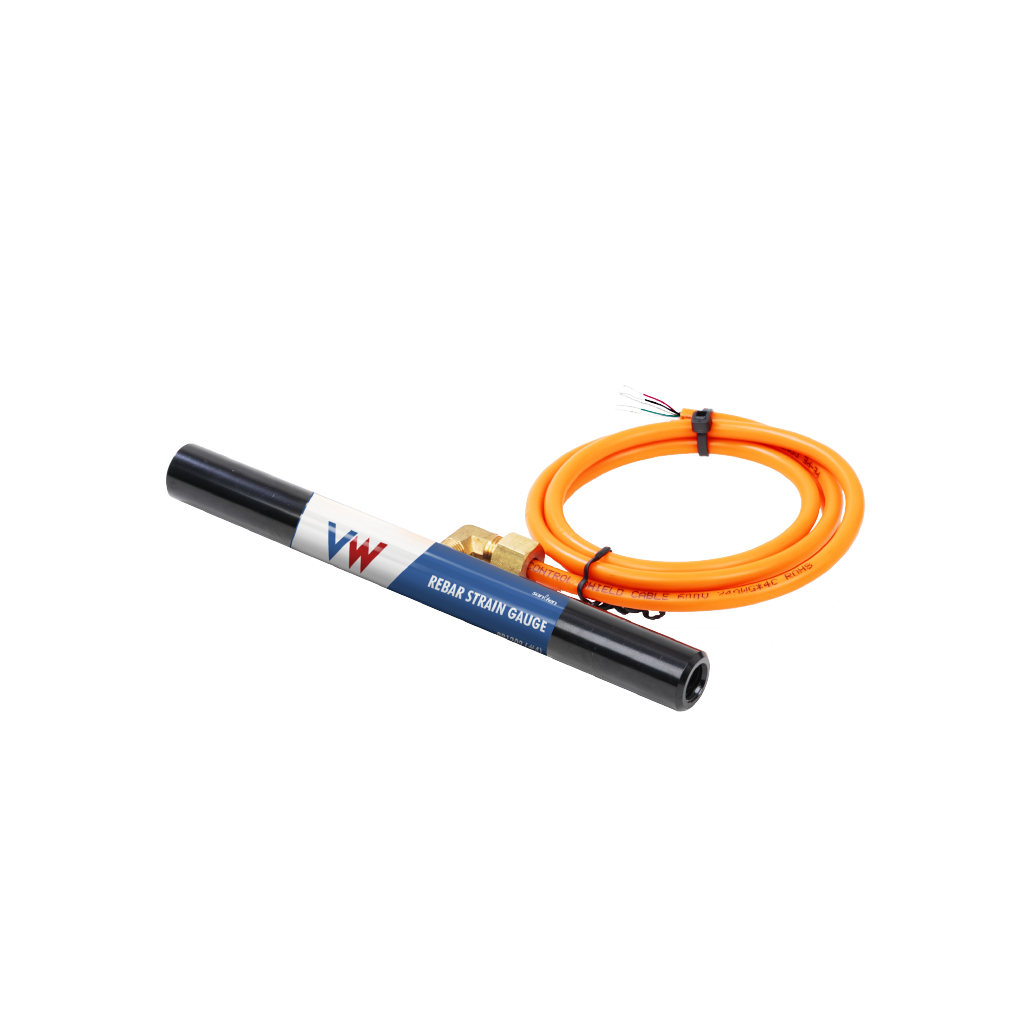

VW Rebar Strain Gauge

VW Rebar Strain Gauge

Feature and Application

Introduction

VW Rebar Strain Gauge is a vital instrument designed to excel in the measurement of strain in concrete structures, diaphragm walls, and concrete piles. Engineered for reliability and performance, this instrument is a rugged, waterproof solution that ensures accurate measurements even in challenging conditions. Trust in its reliability and accuracy to provide critical data that empowers informed decision-making, enhances safety, and optimizes your projects.

Applications

Key Features

Alloy Pressure Sensor

Mechanical Locking

Multi Layers Cable Sealed

Temperature Sensor

Best Suited

Concrete Structures

Diaphragm Walls

Concrete Piles

Web Monitoring Tool and Software

The “dot Cloud” adopts a web-based architecture and primarily provides the NB-IoT datalogger developed by Sanlien Technology.

Web Monitoring Tool and Software

dot Cloud

The “dot Cloud” adopts a web-based architecture and primarily provides the NB-IoT datalogger developed by Sanlien Technology.

Product Specification

Sensor Type

Vibrating Wire Sensor

Temperature Type

Thermistor

Measuring Range

3000 kg/cm²

Temperature Resolution

0.1°C

Accuracy

±0.25 % F.S.

Working Temperature

-30°C to 80°C

Sensitivity

0.08 kg/cm²

Nonlinearity

±0.5 % F.S.

Dimension

19.3 x 190 x 40.3 mm

*All prices, features, and specifications are subject to change without prior notice.
