TILTdot

Wireless Tiltmeter

TILTdot

Feature and Application

Introduction

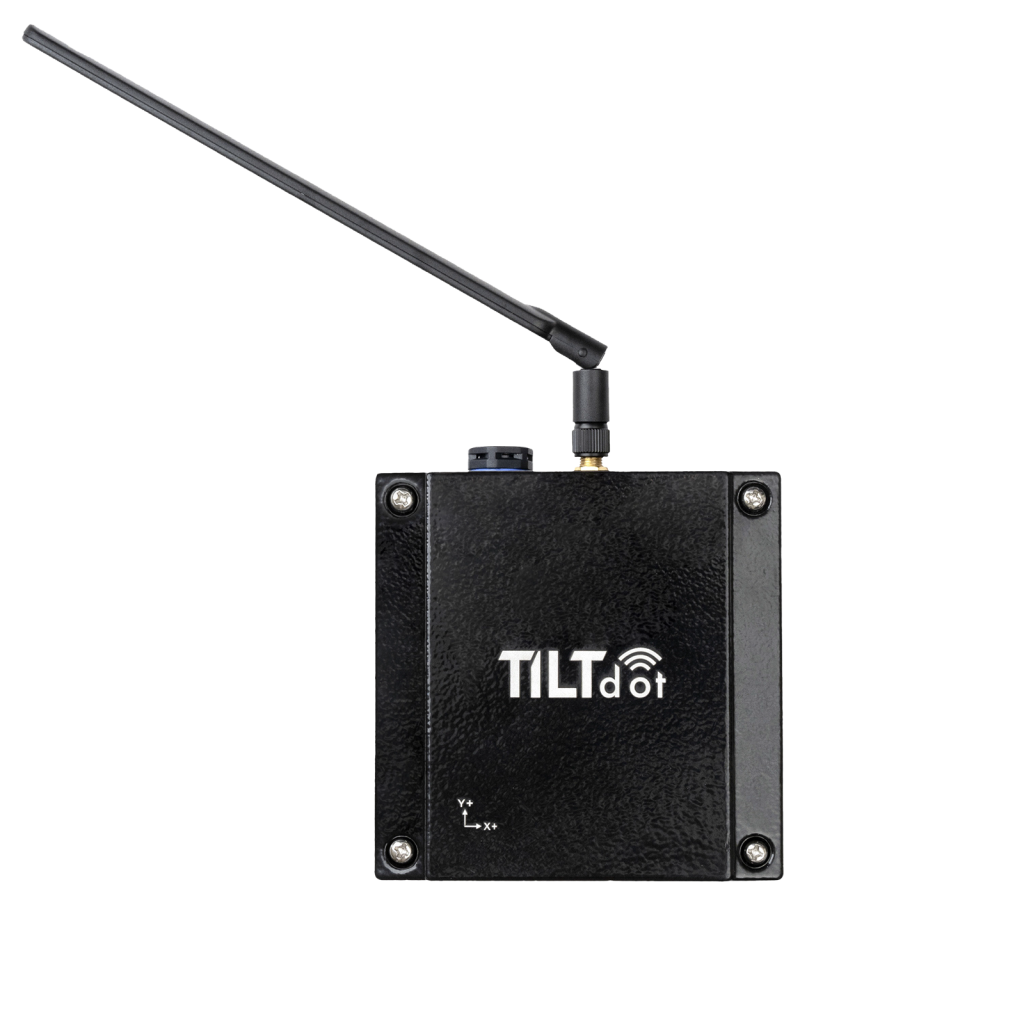

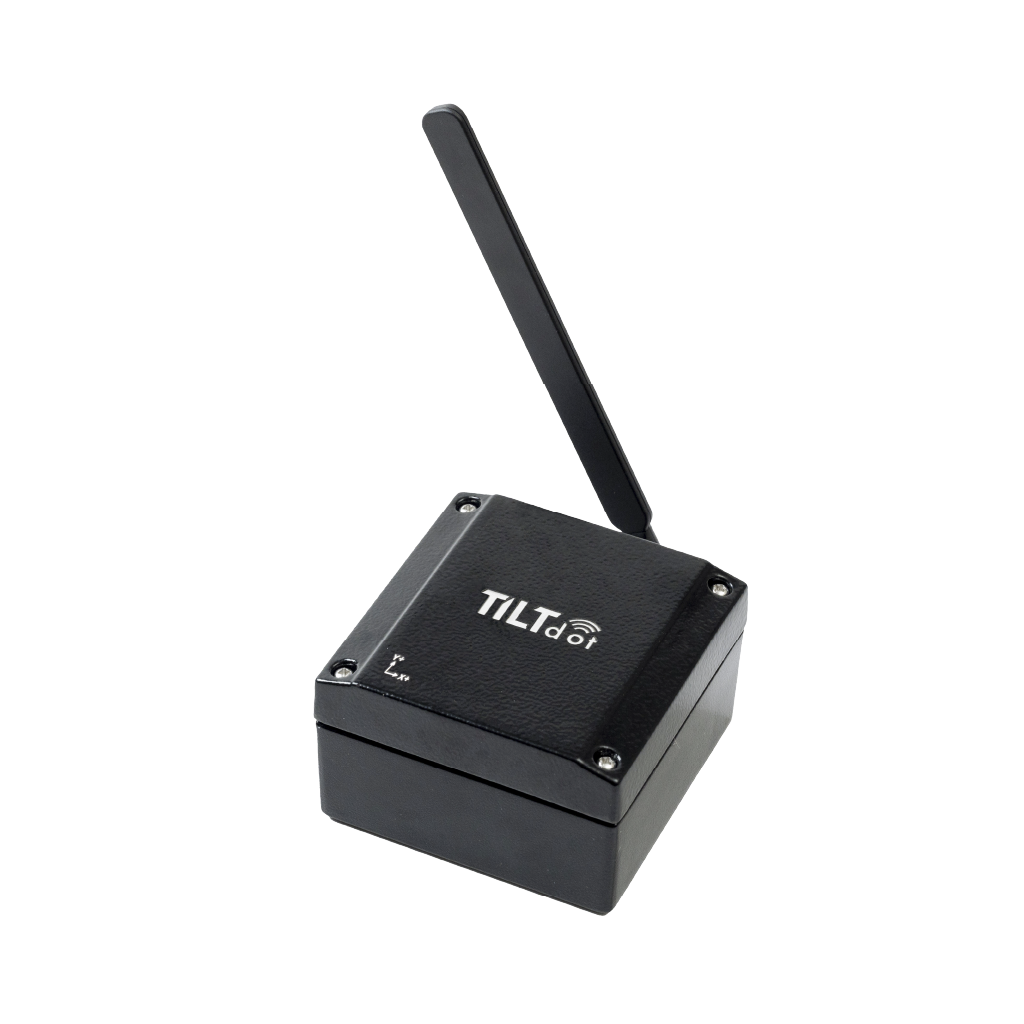

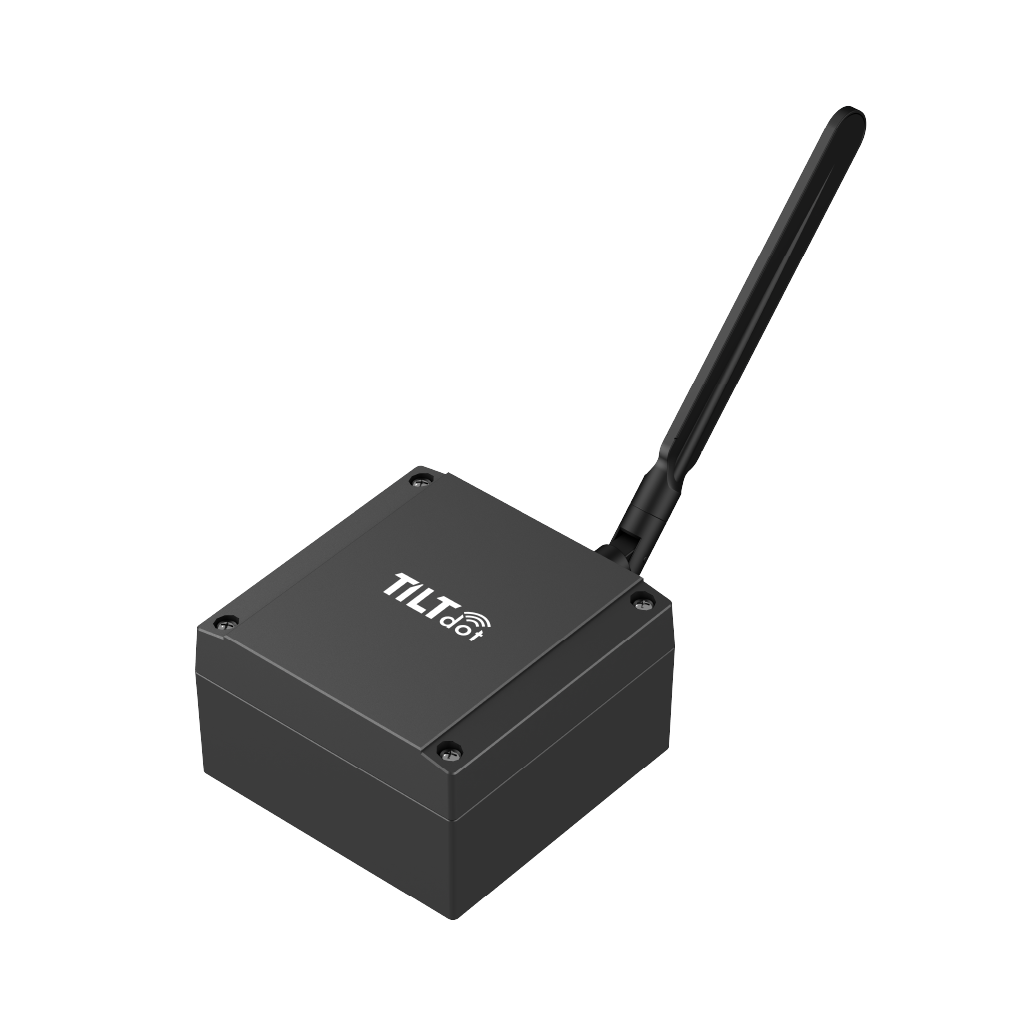

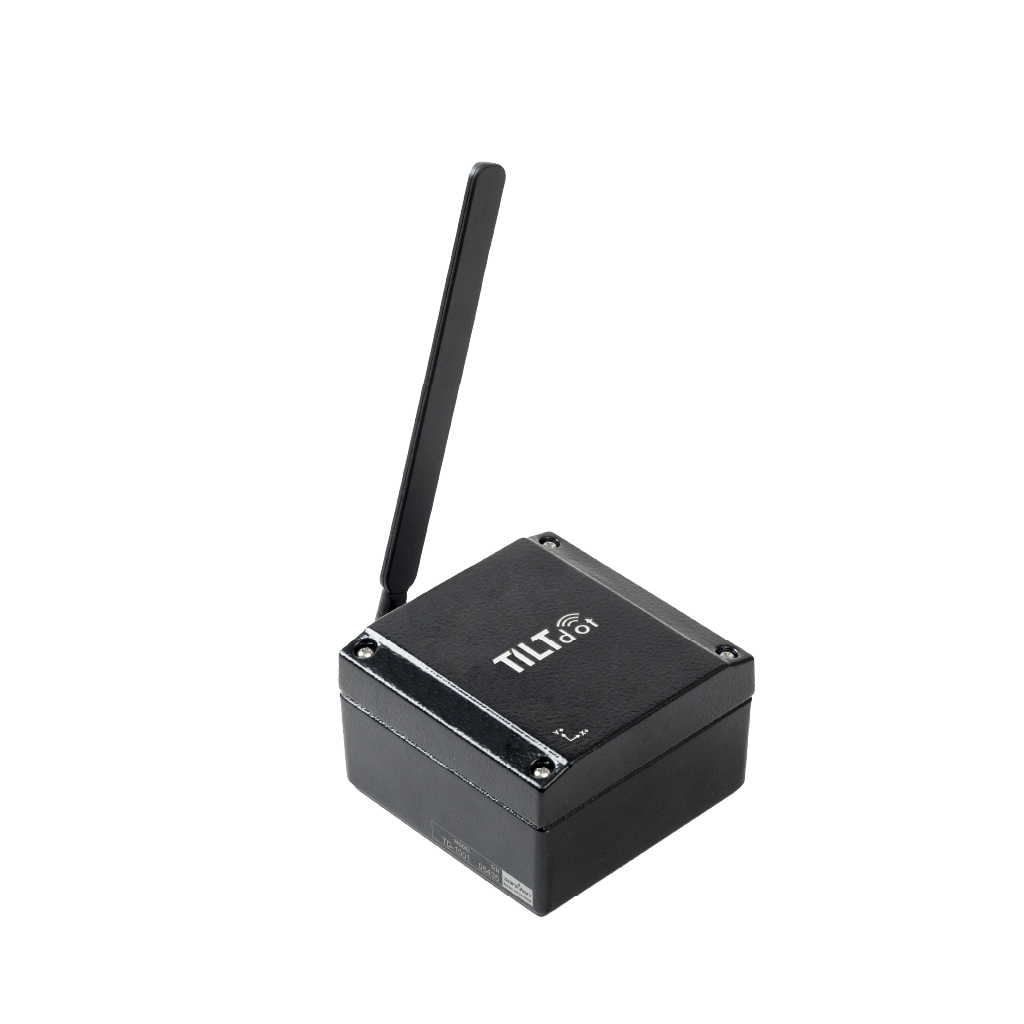

TILTdot- the ultimate electronic dual-axis wireless tiltmeter with advanced features and reliable performance. TILTdot is equipped with NB-IoT wireless transmission and temperature measurement capabilities, making it an ideal choice for various industries, including site and civil engineering, water conservancy construction, bridge engineering, slope safety for buildings, structures, and retaining walls. Designed with a robust and waterproof enclosure, TILTdot meets IP65 standards. With its low-power 18650 Li-ion rechargeable battery, TILTdot can provide long-term measurement and instant data upload. Moreover, TILTdot can store more than 1 million recorded data with its built-in 32 GB Micro SD card and back up your data on dot cloud service.

Applications

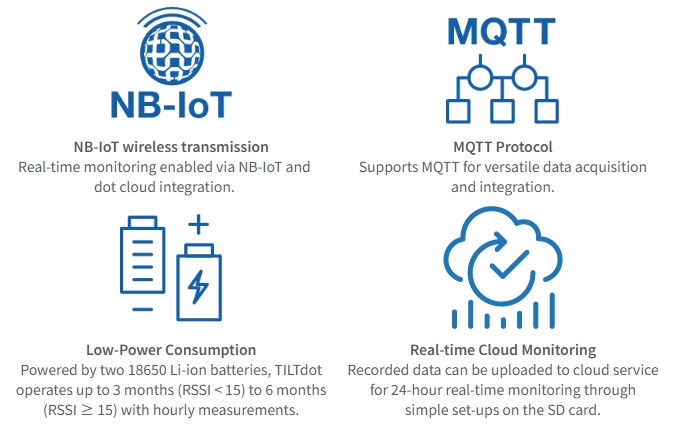

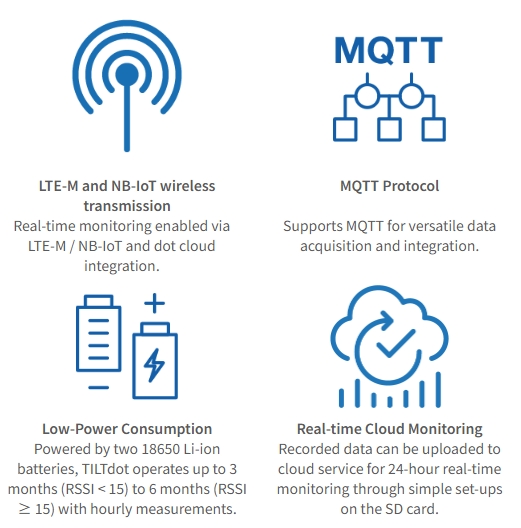

Key Features

Low-Power Consumption

NB-IoT Wireless Transmission

Powered by two 18650 Li-ion rechargeable battery, it is able to be stand-alone for at least 3 months if RSSI <15; 6 months if RSSI ≧15. (Based on measuring once per hour)

Uploading data to the cloud by complying with latest NB-IoT wireless transmission technology for real-time monitoring

Real-time Cloud Monitoring

MQTT Protocol

Recorded data can be uploaded to cloud service for 24-hour real-time monitoring through simple set-ups on the SD card

Complied with MQTT protocol, it is easy to receive and integrate various data

Best Suited

New Construction for Site and Civil Engineering

Water Conservancy Construction

Bridge Engineering

Slope Safety

Web Monitoring Tool and Software

The “dot Cloud” adopts a web-based architecture and primarily provides the NB-IoT datalogger developed by Sanlien Technology.

Web Monitoring Tool and Software

dot Cloud

The “dot Cloud” adopts a web-based architecture and primarily provides the NB-IoT datalogger developed by Sanlien Technology.

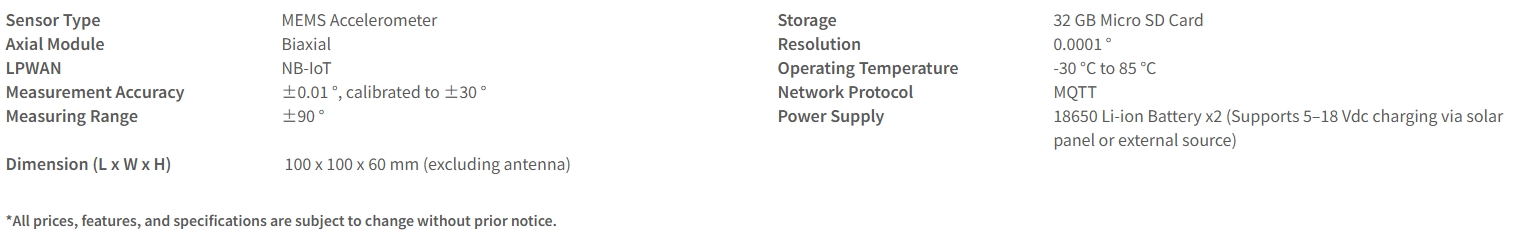

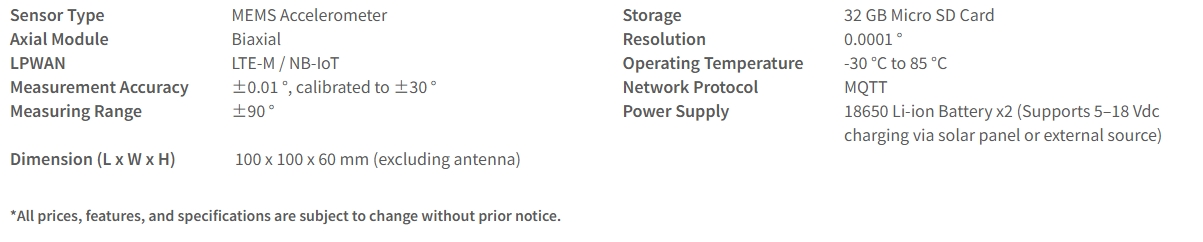

Product Specification

Sensor Type

MEMS Accelerometer

Storage

32 GB Micro SD Card

Axial Module

Biaxial

Resolution

0.0001 °

LPWAN

NB-IoT

Operating Temperature

-30 °C to 85 °C

Measurement Accuracy

±0.01 °, calibrated to ±30 °

Dimension (L x W x H)

100 x 100 x 60 mm (Antenna height not included)

Measuring Range

±90 °

Network Protocol

MQTT

Power Supply

18650 Li-ion Battery x2 (Provides 5-18 Vdc battery charging capability, compatible with solar panels or external power source)

*All prices, features, and specifications are subject to change without prior notice.
