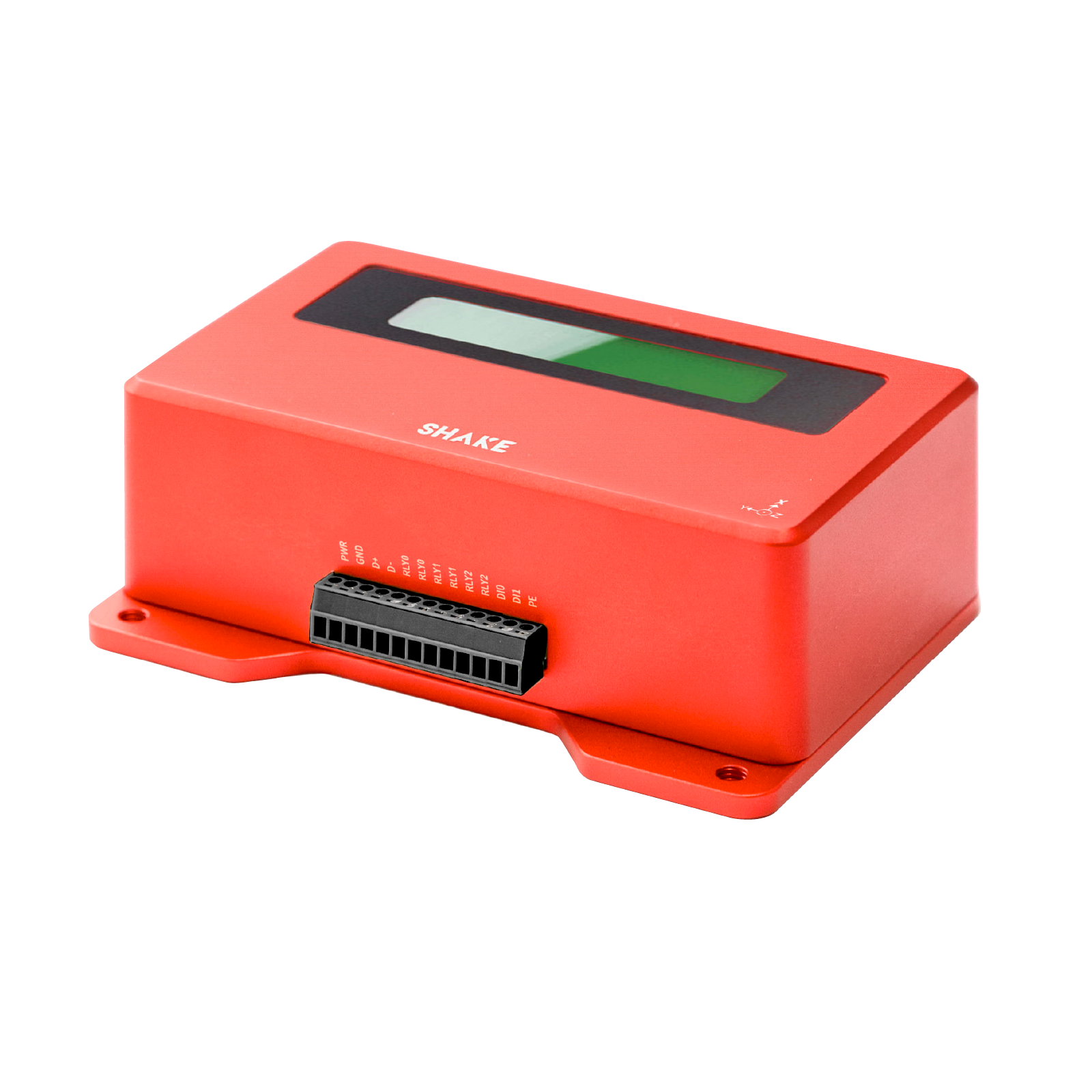

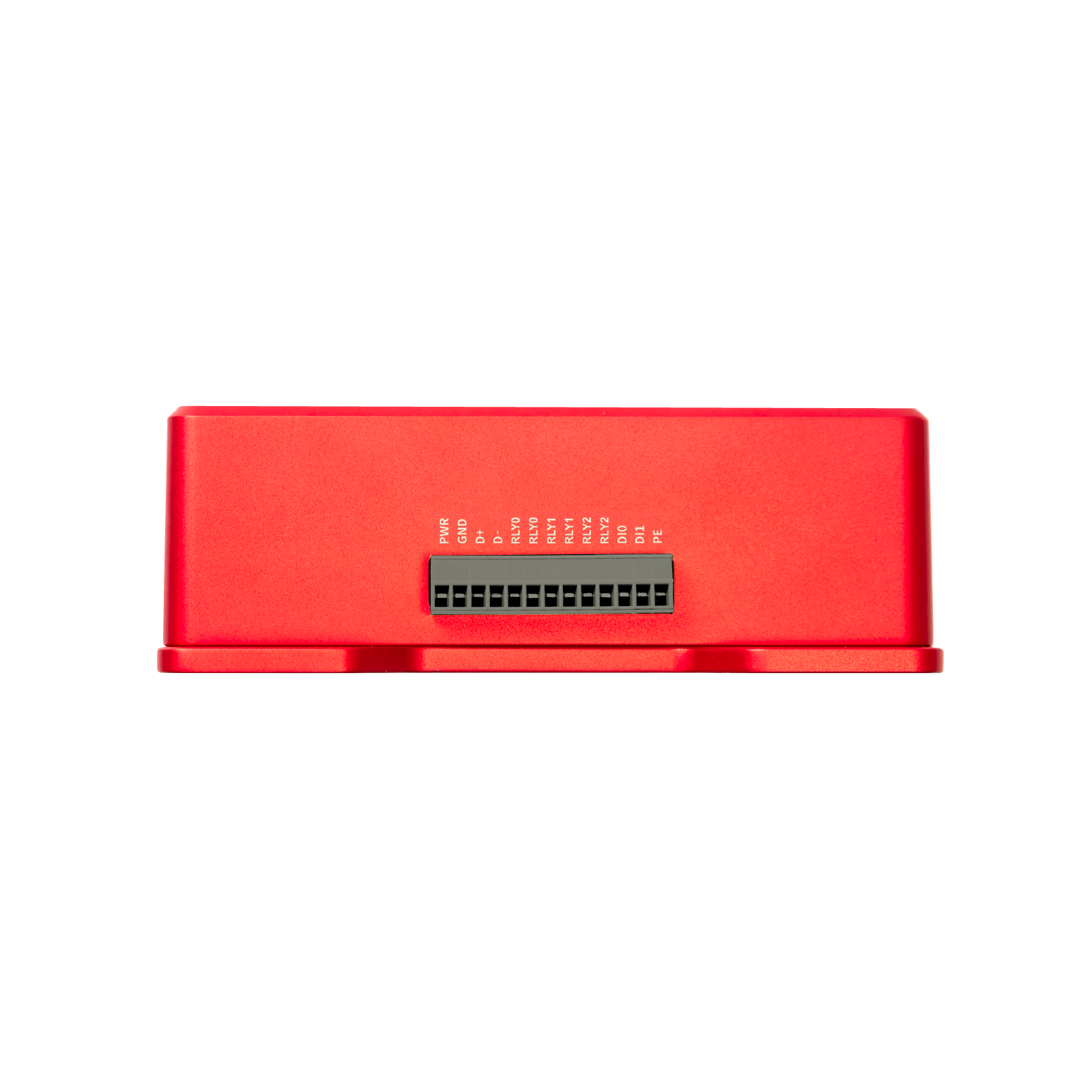

SHAKE SS300

Smart Seismic Switch

SHAKE SS300

Feature and Application

Introduction

SHAKE SS300 is an advanced seismic switch with a tri-axial MEMS accelerometer to help with earthquake disaster mitigation. The unit has three sets of fully isolated mechanical relays. Using Modbus RTU communication, the device can be connected to other systems to activate emergency processes in the event of an earthquake. Equipped with a 100 dB MEMS accelerometer and flash to store the last earthquake information, SHAKE SS300 two sets of DI inputs make set-up and use simple.

The sampling rate of SHAKE SS300 is fixed at 200 SPS to ensure accurate data. Along with the low-pass filter, artificial vibration noise can be effectively filtered out. The dynamic offset allows SHAKE SS300 to be installed on the ground or wall. The three sets of relay can be activated through different settings, such as PGA, PGV and seismic intensity scales, including MMI, KMA, JMA, GBT, and CWB standards. Users can also monitor, test or reset relays through Modbus RTU.

Applications

Key Features

Support International Standard of Intensity Scale

Modbus Protocol

Dynamic Offset

Datalogger with LCD Display of Real-time Parameters

Best Suited

Seismic Hazard Control

Emergency Shutdown

Web Monitoring Tool and Software

“SanDAS” stands for Sanlien data acquisition system used for data acquisition and signal analysis

Web Monitoring Tool and Software

SanDAS

“SanDAS” stands for Sanlien data acquisition system used for data acquisition and signal analysis

Product Specification

Sensor Type

Tri-axial Accelerometer

Working Temperature

-10 °C to 60 °C

Measuring Range

±2 g

Communications

Modbus RTU (RS-485)

Dynamic Range

100 dB

Self-Noise

22.5 ug / Hz^0.5

Sample Rate

200 SPS

Shock Resistance

5000 g 0.5 ms

Frequency Response

0.1 – 20 Hz

Digital Resolution

16 bit

Number of Relays

3 (Form A/Form B)

Relay Active Mode

PGA, PGV, Seismic Intensity Scale

Trigger Algorithm

PGA, PGV, STA/LTA

Contact Rating

0.3A@60VDC

Voltage

10 – 26 VDC

Weight

0.75 kg

Power Consumption

1W@12VDC

Dimension (L x W x H)

153 x 117 x 54 mm

Event Reset

Auto / Manual

*All prices, features, and specifications are subject to change without prior notice.
