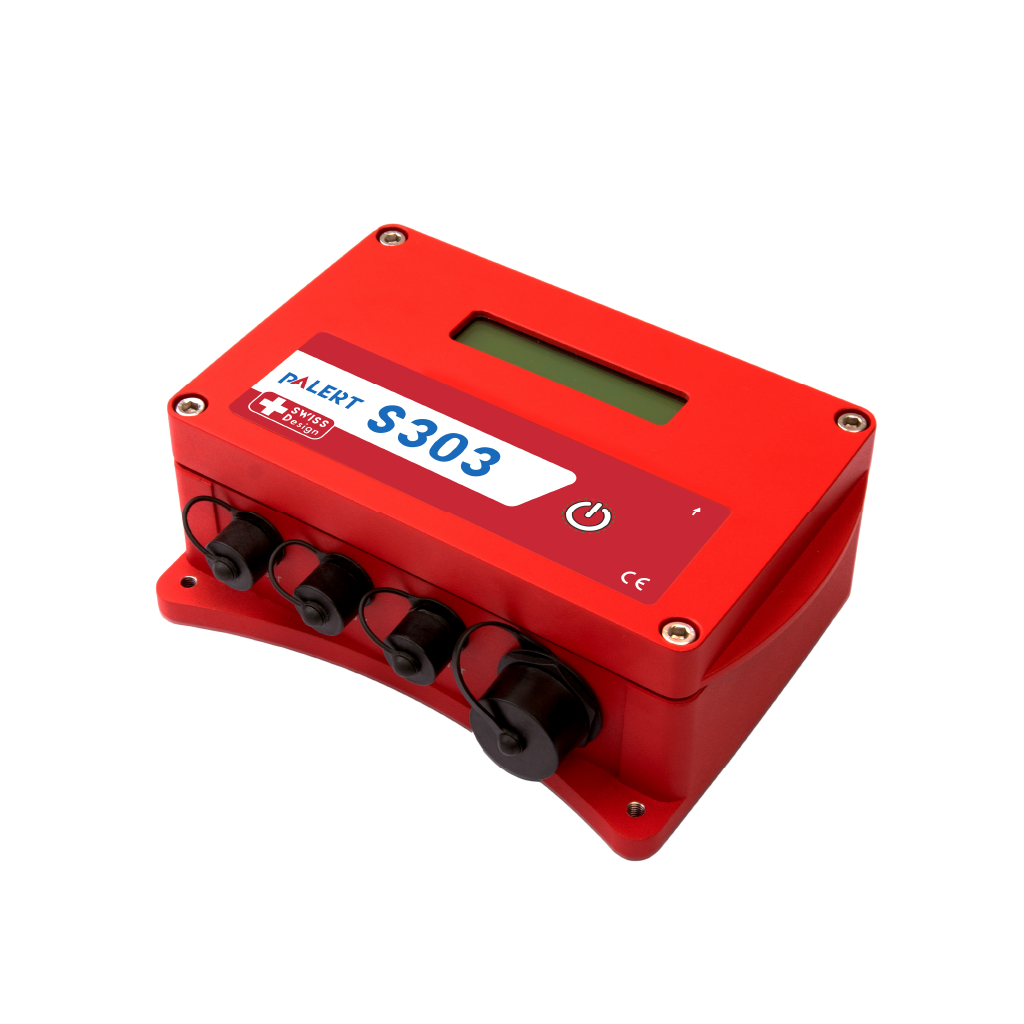

pALERT S303

Tri-axial MEMS Accelerograph

pALERT S303

Feature and Application

Introduction

Introducing the pALERT S303, an advanced iteration of the pALERT network accelerometer series, fortified with cutting-edge features for unparalleled seismic monitoring. With an IP67 protection rating, this device ensures durability in challenging environments, while a significant boost in computing speed and expanded internal memory for waveform storage elevates its overall performance. Developed in collaboration with Prof. Yih-Min Wu of National Taiwan University, the pALERT S303 embeds Pd technology, enabling it to determine seismic events within 3 seconds of capturing P-waves and issue warnings based on the estimated impact of subsequent S-waves, contributing to proactive earthquake damage reduction. The pALERT S303 stands out with three triggering algorithms ‒ Pd, PGA, and STA/LTA, providing users with customizable options for precise seismic detection. Offering configurable low pass filters, users can effectively eliminate high-frequency noise from non-seismic vibrations. The device supports various intensity scales, allowing flexibility in data representation. With event information storage capabilities, users can access crucial details such as triggering time, maximum intensity, PGA in each component, and 3-component acceleration in vector form.

Applications

Key Features

Built-in Back Up Power

Support International Standard of Intensity Scale

Time Synchronization via NTP

Built-in Web GUI

Edge Computing Capability

Modbus Protocol

Best Suited

Residential Buildings

Factories and Plants

Schools and Public Facilities

Product Specification

pALERT S303
pALERT Q332
Sensor Type
Tri-axial MEMS Accelerometer
Optional: 4th-axial vertical Geophone (built-in/externally)
Tri-axial Quartz MEMS Accelerometer
Optional: 4th-axial vertical Geophone (built-in/externally)
Measuring Range
±2, ±4 g (customized)
±1 g, ±2 g, ±4 g, ±15 g
Dynamic Range
>100 dB
>132 dB
Sample Rate
100 SPS, 200 SPS, 500 SPS, 1000 SPS (configurable)
50 SPS, 100 SPS, 200 SPS, 500 SPS, 1000 SPS (configurable)
Frequency Response
0.05 – 40 Hz (with 10Hz / 20Hz / 40Hz digital filters)
DC – 460 Hz
LED Display
2 lines x 20 characters
LED 2 lines x 20 characters
Trigger Algorithm
Pd, PGA, STA / LTA
Pd, PGA, STA / LTA
Power Supply
10 – 30 VDC
10 – 30 VDC
Power Consumption
2W@12VDC
2W@12VDC
Operating Temperature
-20°C to 70°C
-20°C to 70°C
ADC
4 channels@24 bit
4 channels@24 bit
Data Format
CSV / miniSEED
CSV / miniSEED
RTC Accuracy
±60 sec/year, supporting NTP synchronization.
Optional: GPS model available upon request
±60 sec/year, supporting NTP synchronization.
Optional: GPS model available upon request
Storage
16 GB microSD Card (expandable)
16 GB microSD Card (expandable)
Waterproof
IP67
IP67
Weight
1.8 kg
1.8 kg
Dimension (L x W x H)
205 x 160 x 80 mm
205 x 160 x 80 mm

*All prices, features, and specifications are subject to change without prior notice.
