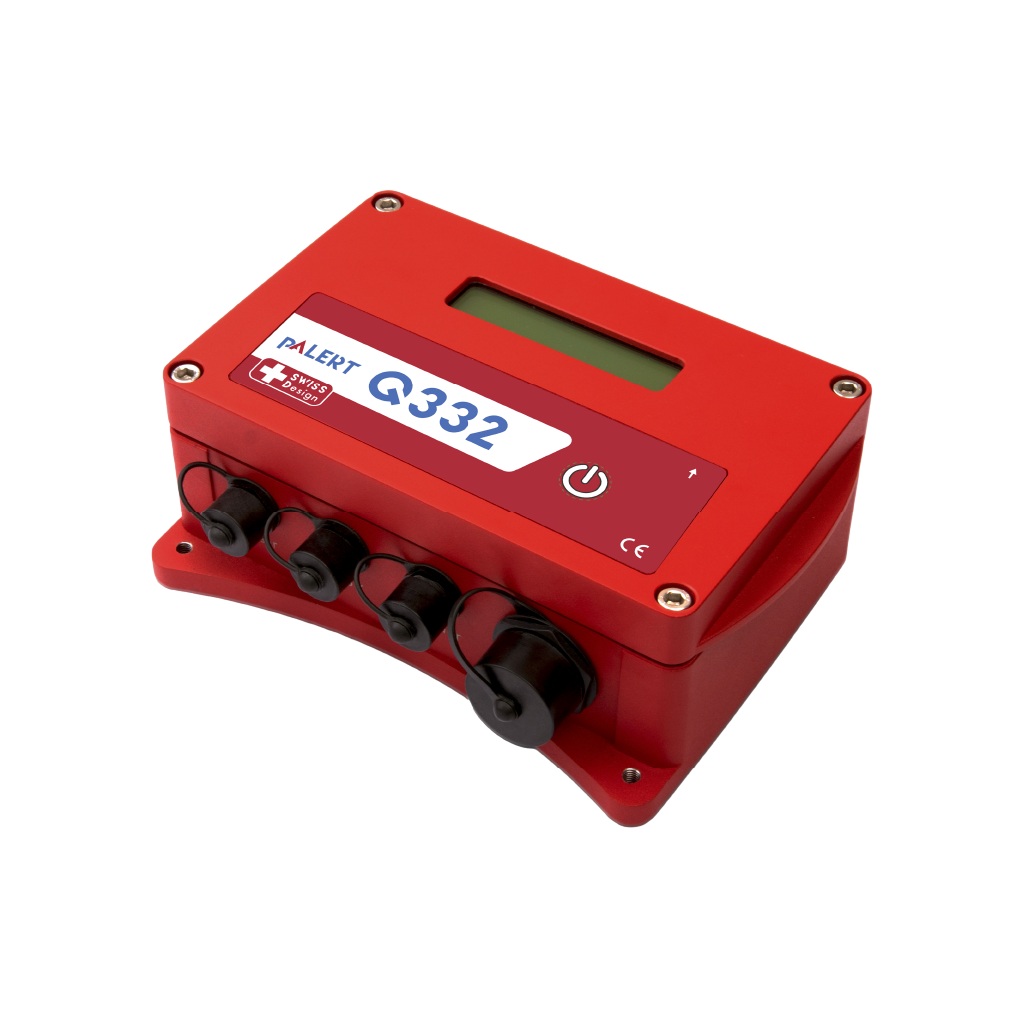

pALERT Q332

Tri-axial Quartz MEMS
Accelerograph

pALERT Q332

Feature and Application

Introduction

pALERT Q332 is a cutting-edge tri-axial digital output all-in-one accelerograph. Embedded with a Quartz MEMS (Micro-Electro-Mechanical System) accelerometer, pALERT Q332 convinces with its ultra-low noise, high stability, and ideal power consumption. The Quartz MEMS technology results both in high accuracy, durability, and long-term stability that are not achievable with conventional sensor technologies.
The versatile pALERT Q332 is well suited to a wide-range of challenging applications such as Earthquake Early Earning (EEW), seismic observation, civil engineering vibration monitoring, micro-tremor monitoring for technology plants, as well as Structural Health Monitoring (SHM). The features of pALERT Q332 include a dynamic range of up to 132dB, a sampling rate of up to 1000 SPS, and support for international standards of intensity scales (MMI, JMA, KMA MMI, CEA, CWB).

Applications

Key Features

Backup Power via Built-in 18650 Battery

Built-in Web GUI & Waveform Viewer

Modbus Protocol

Time Synchronization via NTP or GPS

Digital Output x3

Best Suited

Seismic Monitoring for Regional Array

Structural Health Monitoring for Buildings, Bridges, or Dams

Micro-tremor Monitoring for High-tech Industry

Onsite & National Earthquake

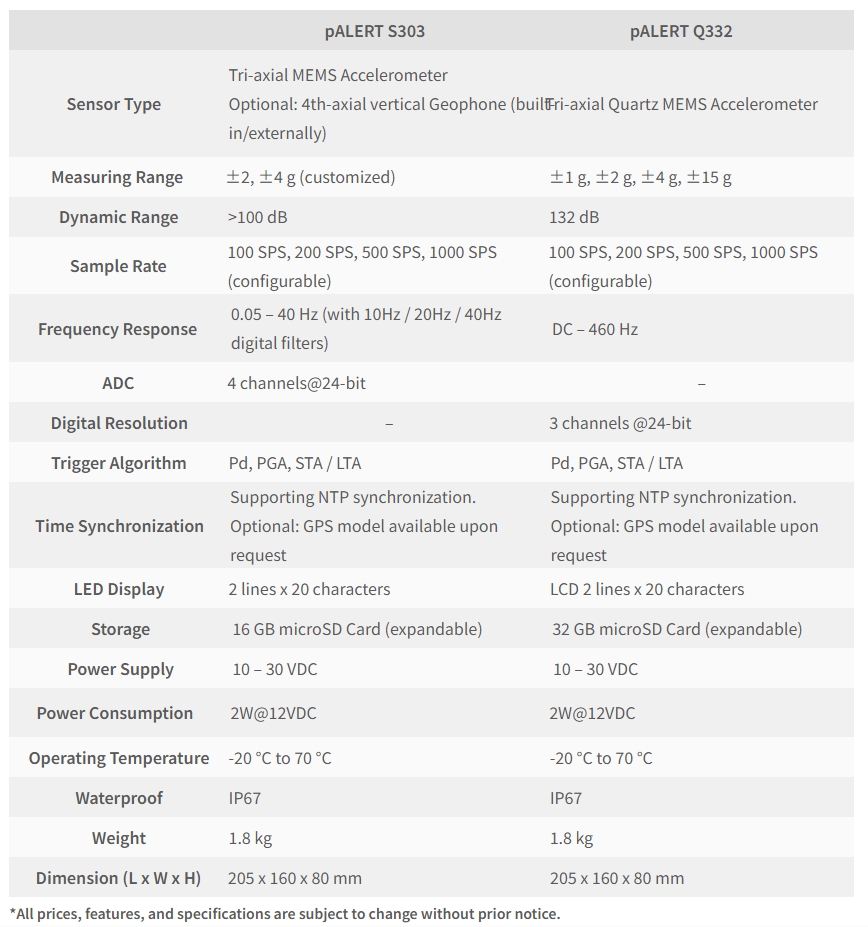

Product Specification

pALERT S303
pALERT Q332
Sensor Type
Tri-axial MEMS Accelerometer
Optional: 4th-axial vertical Geophone (built-in/externally)
Tri-axial Quartz MEMS Accelerometer
Optional: 4th-axial vertical Geophone (built-in/externally)
Measuring Range
±2, ±4 g (customized)
±1 g, ±2 g, ±4 g, ±15 g
Dynamic Range
>100 dB
>132 dB
Sample Rate
100 SPS, 200 SPS, 500 SPS, 1000 SPS (configurable)
50 SPS, 100 SPS, 200 SPS, 500 SPS, 1000 SPS (configurable)
Frequency Response
0.05 – 40 Hz (with 10Hz / 20Hz / 40Hz digital filters)
DC – 460 Hz
LED Display
2 lines x 20 characters
LED 2 lines x 20 characters
Trigger Algorithm
Pd, PGA, STA / LTA
Pd, PGA, STA / LTA
Power Supply
10 – 30 VDC
10 – 30 VDC
Power Consumption
2W@12VDC
2W@12VDC
Operating Temperature
-20°C to 70°C
-20°C to 70°C
ADC
4 channels@24 bit
4 channels@24 bit
Data Format
CSV / miniSEED
CSV / miniSEED
RTC Accuracy
±60 sec/year, supporting NTP synchronization.
Optional: GPS model available upon request
±60 sec/year, supporting NTP synchronization.
Optional: GPS model available upon request
Storage
16 GB microSD Card (expandable)
16 GB microSD Card (expandable)
Waterproof
IP67
IP67
Weight
1.8 kg
1.8 kg
Dimension (L x W x H)
205 x 160 x 80 mm
205 x 160 x 80 mm

*All prices, features, and specifications are subject to change without prior notice.
