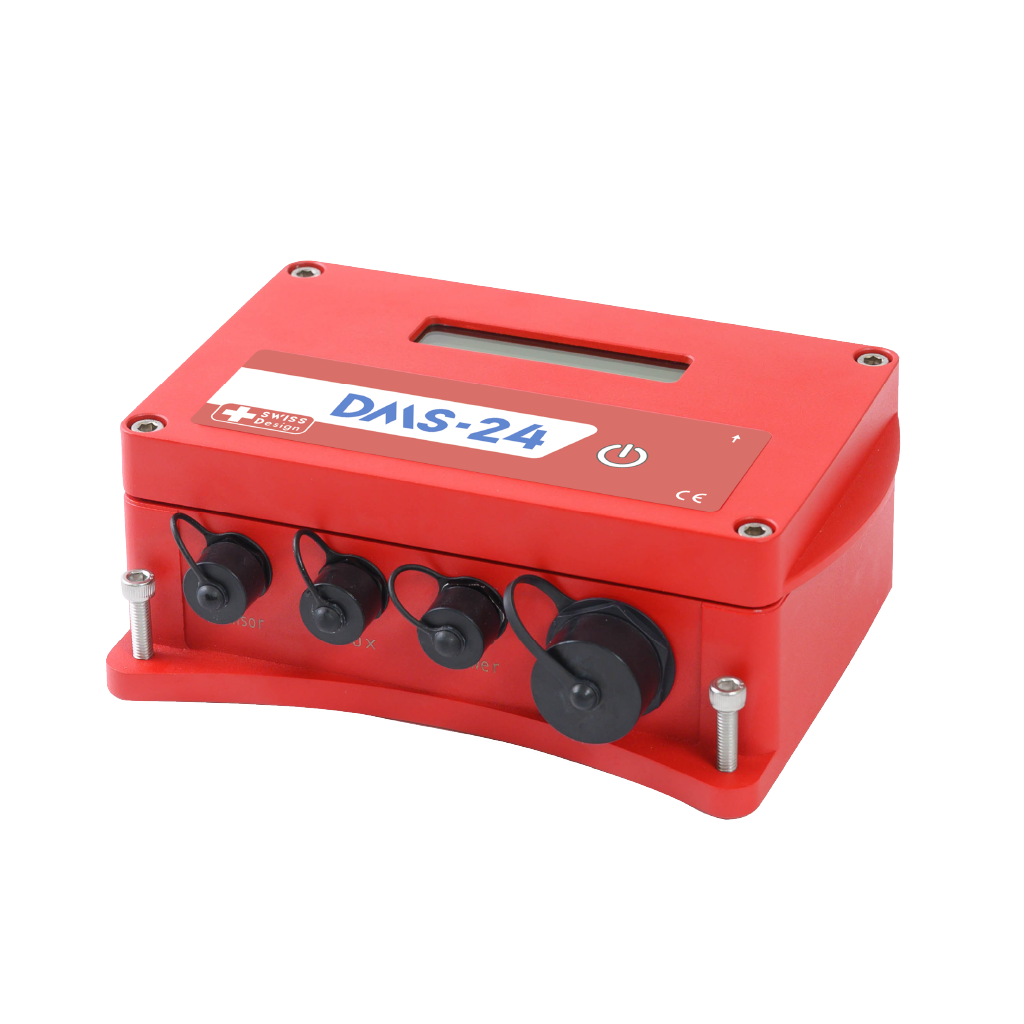

DMS-24

Dynamic Datalogger

DMS-24

Feature and Application

Introduction

The DMS-24 Dynamic Datalogger redefines precision in data logging with its exceptional dynamic range exceeding 120dB. Whether deployed in Earthquake Early Warning Systems (EEWS), Remote Structural Health Monitoring (RSHD), or bridge monitoring, this versatile device stands out as a reliable solution for a myriad of applications. For optimal performance, the DMS-24 is recommended to be paired with our advanced force balance accelerometers ‒ SHAKE FA135 and SHAKE FA335. The device’s seamless integration is further enhanced by its support for Modbus TCP and MQTT protocols, facilitating straightforward communication and interoperability within existing networks.
DMS-24 allows users to fine-tune data logging parameters according to specific requirements, adding a layer of adaptability to its capabilities. The built-in web graphical user interface (GUI) enhances user experience, providing easy access to device settings and real-time data visualization.

Applications

Key Features

Dynamic Offset

Built-in Web GUI

Modbus Protocol

Support Real-time of Local Intenisty Scale

Tme Synchronization via NTP

Best Suited

Dam Monitoring

Residential Buildings

Bridge Monitoring

Web Monitoring Tool and Software

“SanDAS” stands for Sanlien data acquisition system used for data acquisition and signal analysis

Web Monitoring Tool and Software

SanDAS

“SanDAS” stands for Sanlien data acquisition system used for data acquisition and signal analysis

Product Specification

Sensor Type

Tri-axial FBA Accelerometer

Sampling Rate

50 sps, 100 sps, 200 sps, 400 sps

Channel of Sensor

4

Offset Drift

0.000001 g/°C

Measuring Range

±2 g

Communication

RJ-45

Selectable Sensitivities

100 SPS, 200 SPS, 500 SPS, 1000 SPS (configurable)

Operation Temperature

-20°C to 70°C

Selectable Sensitivities

5 V/g

Storage

16 GB (option to 64GB)

Power Supply

12 VDC

Built-in Watch Dog Function

10 s

Full Scale Output

±10 V fully differential at 50 ohm

Network Module

10/100Base -TX Ethernet Controller

Bandwidth

DC – 100 Hz

Algorithms

Pd, PGA, STA/LTA

ADC Resolution

24 bit

*All prices, features, and specifications are subject to change without prior notice.
